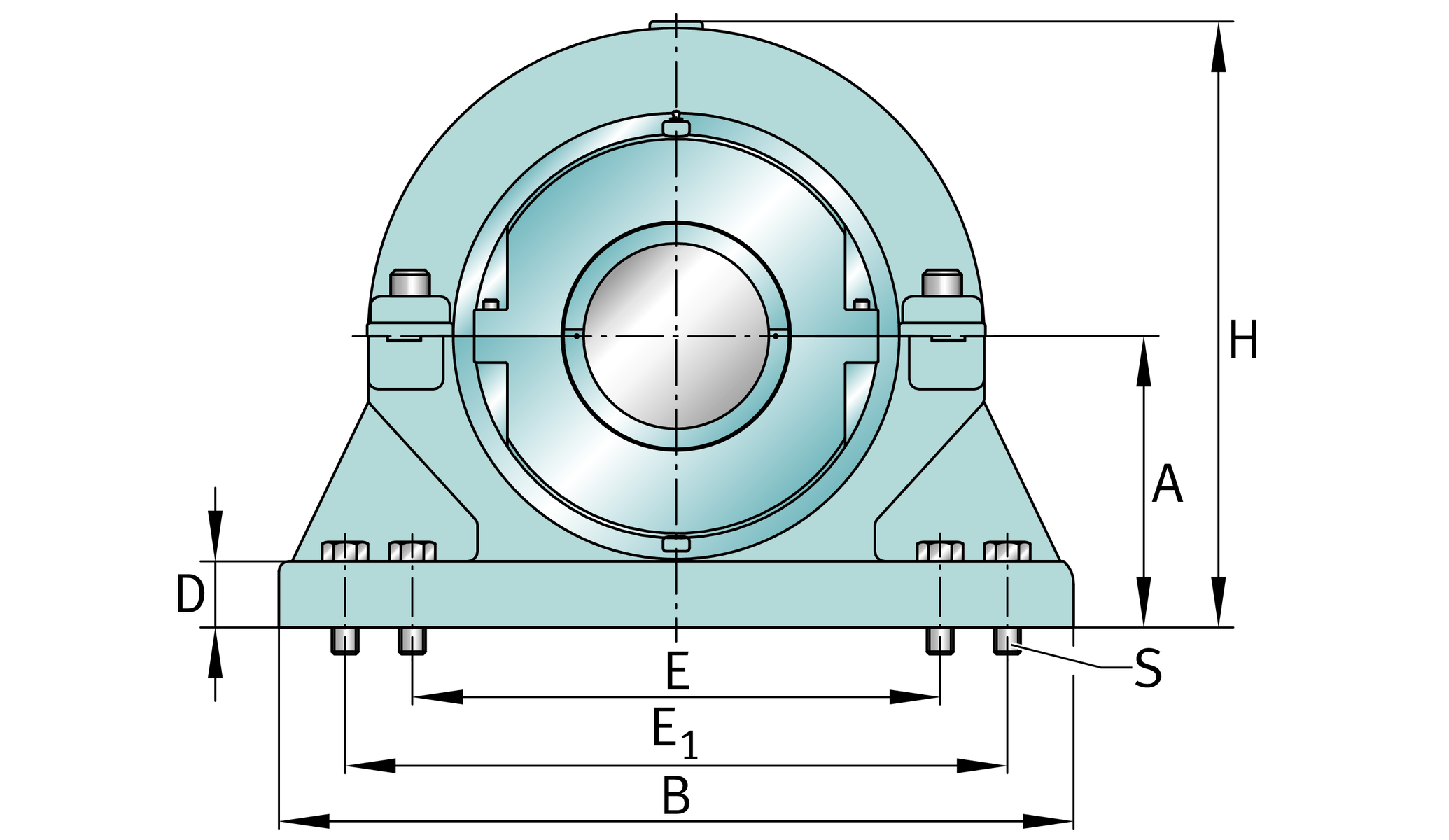

| d |
12 in
|
Shaft diameter |
| H |
31 in
|
Housing height |
| B |
37,75 in
|
Length base |
| ?m |
1.294,998 lbs
|
Вес |
|
S2BCH-1200-FL
|
Complete unit float | |
|
S2BCH-1200-HD
|
Complete unit held | |
|
PH-28
|
Housing designation | |
| A |
15,5 in
|
Center height |
| C |
13 in
|
Base width |
| D |
2,375 in
|
Base height |
| Emin |
21,5 in
|
Base hole distance 1 min |
| Emin |
23 in
|
Base hole distance 1 max |
| E1, min |
29,5 in
|
Base hole distance 3 min |
| E1, max |
31 in
|
Base hole distance 3 max |
| F |
10 in
|
Base hole distance 2 |
| s |
8
|
# of mounting bolts |
| s |
1,25 in
|
Mounting bolt diameter |
|
S2BC-1200-FL
|
Cartridge float bearing | |
|
S2BC-1200-HD
|
Cartridge held bearing | |
|
S2C-1200
|
Cartridge | |
| G |
12,0625 in
|
Length through bore |
| L |
21,75 in
|
Outside diameter cartridge |
|
0,416 oz
|
Grease capacity | |
|
1.322,331 lbs
|
Cartridge weight | |
|
S2B-1200-FL
|
Bearing float | |
|
S2B-1200-HD
|
Bearing held | |
|
654,552 lbs
|
Bearing weight | |
|
1200 Grp
|
Bearing group | |
| Cr |
301.125 lbf
|
Динамическая грузоподъемность, радиальная |
| C0r |
555.316 lbf
|
Статическая грузоподъемность, радиальная |
| Ca |
15.192 lbf
|
Динамическая грузоподъемность, осевая |
|
850 1/min
|
Limiting speed | |
| D0 |
19,5 in
|
Outside diameter bearing |
| C0 |
7,594 in
|
Width inner ring |
| B0 |
4,063 in
|
Width outer ring |
