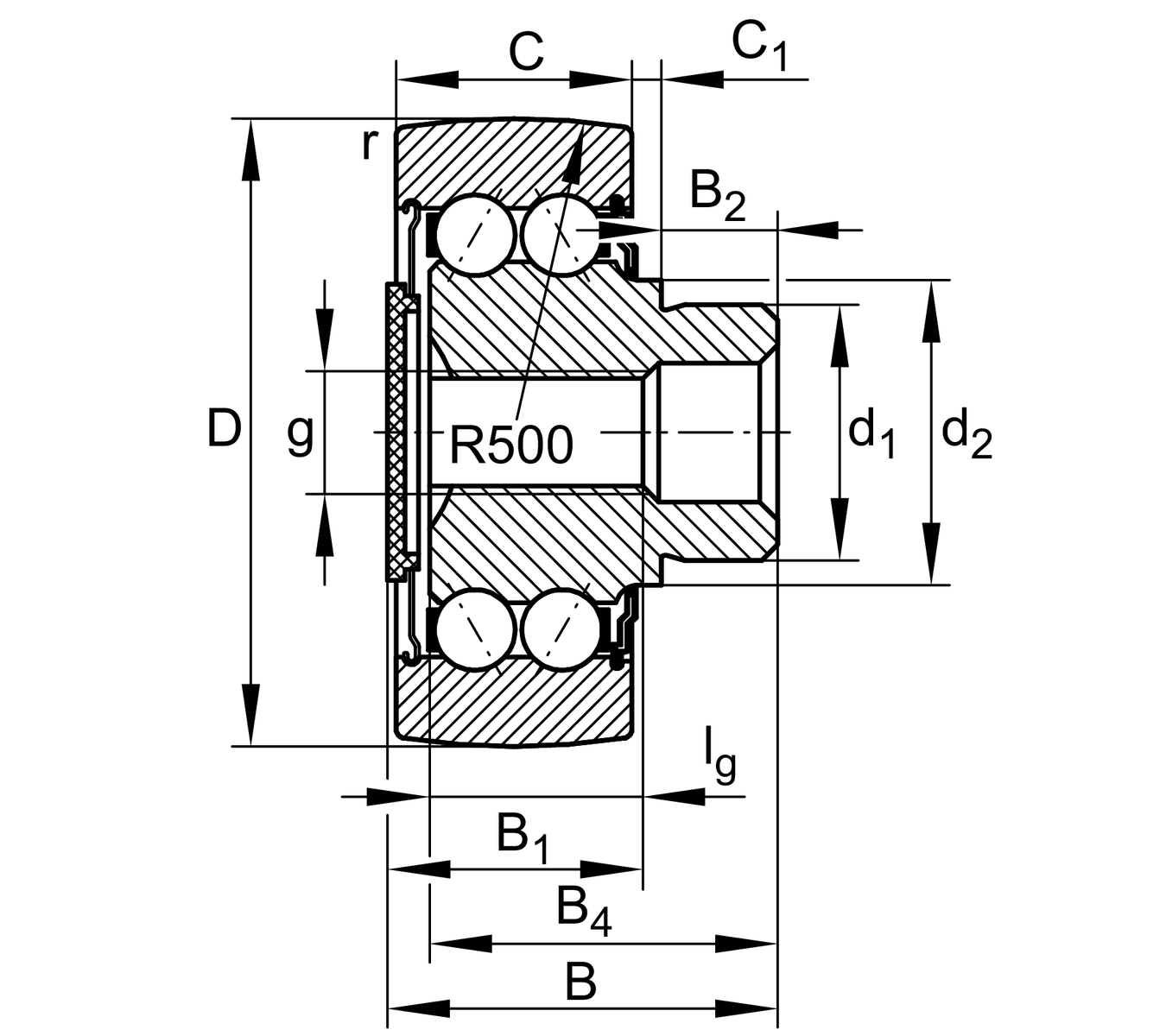

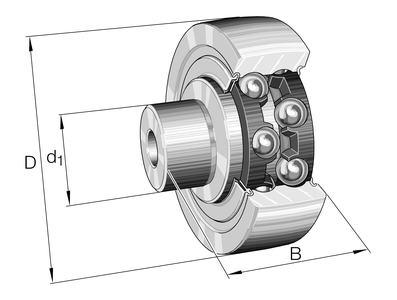

Опорные ролики с цапфой ZL52..-DRS, двухрядные, контактное уплотнение с одной стороны
| D |
40 mm
|
Outside diameter |
| d1 |
16 mm
|
Fit diameter of roller stud / stud |
| B |
36,2 mm
|
Width |
| Cr w |
9.900 N
|
Basic dynamic load rating, radial |
| C0r w |
6.500 N
|
Basic static load rating, radial |
| Cur w |
325 N
|
Fatigue load limit, radial |
| nD G |
7.000 1/min
|
Speed on permanent grease lubrication |
| ?m |
0,12 kg
|
Вес |
| B1 max |
20,5 mm
|
Maximum witdh of thrust washer |
| B2 |
16 mm
|
Bolt/stud length effectively |
| B4 |
34 mm
|
Length total |
| C |
15,9 mm
|
Width, outer ring |
| C1 |
3,5 mm
|
Protrusion outer ring to thrust washer |
| d2 |
20 mm
|
Stop diameter of thrust washer |
| rmin |
0,6 mm
|
Minimum chamfer dimension |
| g |
M8
|
Thread inside |
| lg |
15 mm
|
Thread length (inner) |
| R |
500 mm
|
Radius of outer ring outside profile |
| Sealing | DRS | Контактное уплотнение с одной стороны |
| Outer Ring profile | R500 | |
| Relubrication feature | Без | |
| Assembling aid head | Шлиц |
