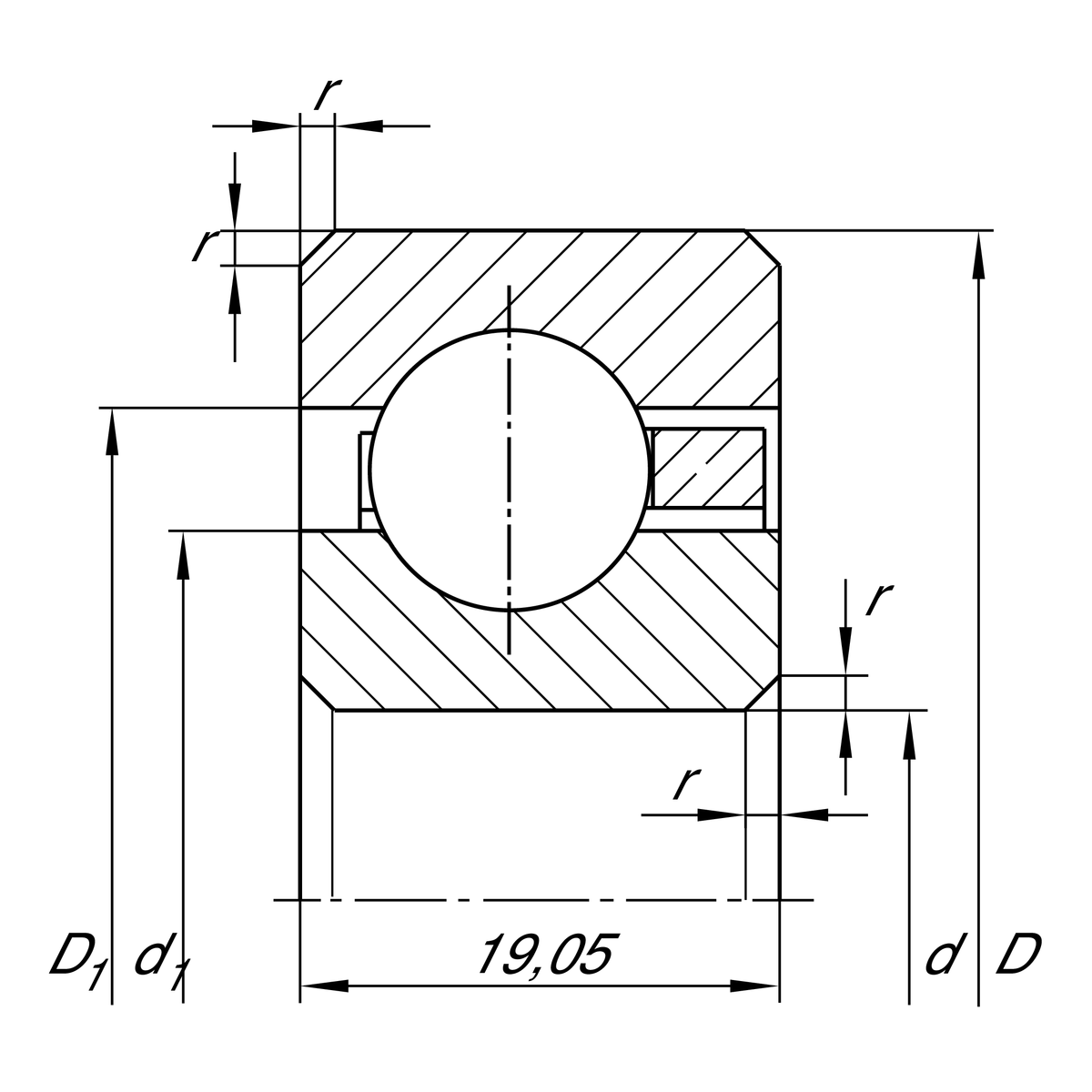

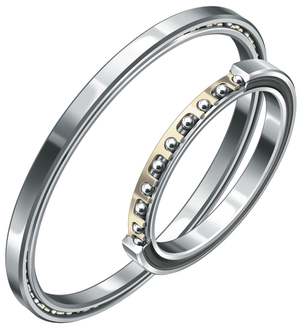

Радиальный шарикоподшипник, подшипник с тонкими кольцами CSCF, латунный штампованный сепаратор
| d |
228,6 mm
|
Bore diameter |
| D |
266,7 mm
|
Outside diameter |
| B |
19,05 mm
|
Width |
| Cr |
31.500 N
|
Basic dynamic load rating, radial |
| C0r |
43.500 N
|
Basic static load rating, radial |
| nG |
2.180 1/min
|
Limiting speed |
| ?m |
1,77 kg
|
Вес |
| rmin |
2 mm
|
Minimum chamfer dimension |
| d1 |
242,7 mm
|
Shoulder diameter inner ring |
| D1 |
252,6 mm
|
Shoulder diameter outer ring |
| Tmin |
-30 °C
|
Operating temperature min. |
| Tmax |
120 °C
|
Operating temperature max. |
| Logistical code | HLE | - |
| Sealing | without | not sealed |
| Cage | YH | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Radial internal clearance | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
Характеристики
